| Products › Submersible Sewage Pump |
 |
|

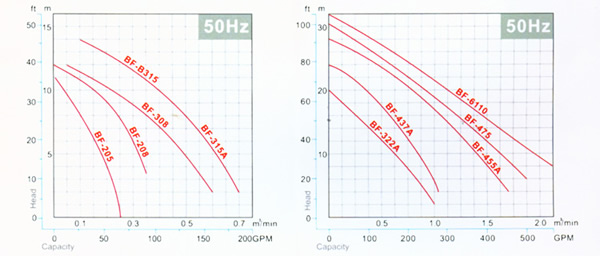

| » BF SERIES |
 |
|
APPLICATIONS
Drainage of food market irrigation, wastewater treatment of animal husbandry water circulation for fishery, landscape pond, water refining and filtering wastewater plant, drainage of basement, waste water treatment of food industry and other industries etc. |
|
FEATURES
1 Motor adopts laminated sheet of Si steel; shaft and rotor are lathed in high precision to raise stability and efficiency of motor
2 Special water flow design to produce high performance for applying in wastewater, muddy liquid and other comprehensive sewage treatments
3 The wolfram steel edge is used to upgrade impeller for easily dewatering various wastewater and solids regarding to its high wear - resistance
4 Pump casing, shaft and screws are all made of stainless steel for long life of pump and attractive appearance
5 Models of 3HP above installed dual SIC mechanical seals
6 Cable base is upgraded by filling EPOXY to raise humidity - resistance
7 Innovative design of easily disassemble motor and pump housing for maintenance |
|
| Model |
Output Hp (kW) |
Outlet Diameter inch |
Phase ø |
Pole |
Standards |
Free Passage mm |
Max diameter mm |
Height mm |
Weight kg |
| Head m |
Capacity m3/min |
| BF-205 |
1/2(0.4) |
2" |
1ø/3ø |
2 |
8 |
0.1 |
10 |
230 |
360 |
14.5 |
| BF-205E |
1/2(O.4) |
2" |
1ø |
2 |
8 |
0.1 |
10 |
230 |
360 |
15 |
| BF-208 |
1(0.75) |
2" |
1ø/3ø |
2 |
9 |
0.2 |
15 |
270 |
455 |
25 |
| BF-208E |
1(0.75) |
2" |
1ø |
2 |
9 |
0.2 |
15 |
270 |
455 |
25.5 |
| BF-308 |
1(0.75) |
3" |
1ø/3ø |
2 |
7 |
0.4 |
20 |
300 |
455 |
26 |
| BF-315A |
2(1.5) |
3" |
1ø/3ø |
2 |
8 |
0.5 |
20 |
330 |
525 |
34/30 |
| BF-B315 |
2(1.5) |
3" |
1ø/3ø |
2 |
8 |
0.5 |
20 |
330 |
525 |
41/38 |
| BF-322A |
3(2.20 |
3" |
3ø |
2 |
10 |
0.6 |
30 |
435 |
540 |
49 |
| BF-437A |
5(3.7) |
3"-4" |
3ø |
2 |
15 |
0.6 |
30 |
435 |
585 |
55 |
| BF-455A |
71/2(5.5) |
4" |
3ø |
2 |
20 |
0.8 |
35 |
565 |
670 |
80 |
| BF-475 |
1O(7.5) |
4" |
3ø |
2 |
14 |
1.4 |
40 |
580 |
740 |
102 |
| BF-6110ø |
15(11) |
6" |
3ø |
2 |
20 |
1.1 |
40 |
600 |
740 |
110 |
|
|

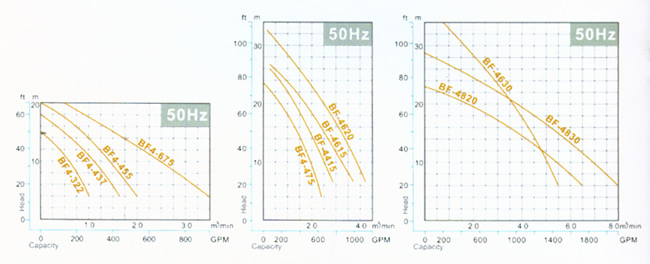

| » BF-4 POLE SERIES |
 |
|
FEATURES
1 This sehes adopts high efficient motor that is tested by serious quality control and applies high insulation class to offer long time operation
2 Over - load protector is built-in to prevent motor from over-heat and overload
3 Installing high quality SIC seal to produce high wear- resistance and leakng-proof for maintaining long life of motor
4 Speed of flow is superiorly applied to big volume housing and impelle- to achieve high efficiency and high performance for sewage
5 Cable base is upgraded by filling EPOXY lo raise humidity-resistance |
|
APPLICATIONS
Drainage of food market, waste wator iroalmcnt of animal husbandry. water refining tank, waste waler plant drainage of building basement, waste waler treatment of food industry, pulp and paper industry, leather, steel mill, and other industries etc |
 |
| Model |
Output Hp (kW) |
Outlet Diameter inch |
Phase ø |
Start Method |
Pole |
Standards |
Free Passage mm |
Max diameter mm |
Height mm |
Weight kg |
| Head m |
Capacity m3/min |
| BF4-322 |
3(2.2) |
3" |
3ø |
Direct |
4 |
10 |
0.6 |
40 |
580 |
615 |
80 |
| BF4-437 |
5(3.7) |
4" |
3ø |
Direct |
4 |
11 |
1 |
40 |
580 |
670 |
86 |
| BF4-455 |
71/2(5.5) |
4" |
3ø |
Direct |
4 |
14 |
1 |
30 |
600 |
710 |
108 |
| BF4-475 |
10(7.5) |
4" |
3ø |
Direct |
4 |
18 |
1 |
40 |
730 |
820 |
154 |
| BF4-675 |
10(7.5) |
6" |
3ø |
Direct |
4 |
10 |
2.5 |
45 |
850 |
870 |
184 |
| BF-4415 |
15(11) |
4" |
3ø |
Y-Δ |
4 |
22 |
1 |
45 |
940 |
950 |
235 |
| BF-4615 |
15(11) |
6" |
3ø |
Y-Δ |
4 |
15 |
2.5 |
50 |
940 |
950 |
250 |
| BF-4620 |
20(15) |
6" |
3ø |
Y-Δ |
4 |
20 |
2.5 |
55 |
940 |
950 |
245 |
| BF-4820 |
20(15) |
8" |
3ø |
Y-Δ |
4 |
13 |
4.5 |
60 |
960 |
980 |
270 |
| BF-4630 |
30(22) |
6" |
3ø |
Y-Δ |
4 |
26 |
2.5 |
55 |
940 |
990 |
290 |
| BF-4830 |
30(22) |
8" |
3ø |
Y-Δ |
4 |
18 |
4.5 |
60 |
960 |
990 |
300 |
|
|

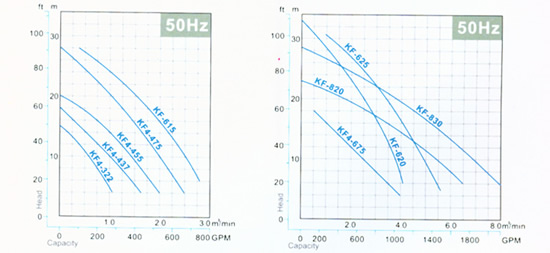

| » KF-4 POLE SERIES |
 |
|
FEATURES
1 This range adopts high efficient 4P motor that is tested by serious quality control and applied high class of insulation to provide long time operation
2 Motor installed over-load protector to prevent motor from over-heat and over-load
3 Installing high quality SIC seal to produce high wear resistantance and leaking- proof for long life of motor
4 Speed of flow is superiorly designed and can be applied within big pump housing and impeller to achieve high efficiency and high performance for any wastewater
5 Inner cable wires and cable base are upgraded by filling EPOXY to raise humidity-resistance
6 This series adopts high quality SUS316 |
|
APPLICATIONS
Drainage of food market, wastewater treatment of animal husbandry, water refining tank waste water plant, drainage Of building basement, waste water treatment of food industry, pulp and paper industry, steel mill, and other industries etc.
Wastewater treatment of chemical industry, medical, industry, hospital. laboratory, electronics industries and others etc. |
 |
| Model |
Output Hp (kW) |
Outlet Diameter inch |
Phase ø |
Pole |
Standards |
Max diameter mm |
Height mm |
Weight kg |
| Head m |
Capacity m3/min |
| KF-205 |
1/2(0.4) |
2" |
1ø/3ø |
2 |
8 |
0.1 |
230 |
340 |
14 |
| KF-208A |
1(0.75) |
2" |
1ø/3ø |
2 |
9 |
0.2 |
260 |
460 |
21 |
| KF-308 |
1(0.75) |
2" |
1ø/3ø |
2 |
7 |
0.4 |
320 |
460 |
22 |
| KF-315 |
2(1.5) |
3" |
1ø/3ø |
2 |
8 |
0.5 |
320 |
520 |
35/31 |
| KF-322A |
3(2.2) |
3" |
3ø |
2 |
10 |
0.6 |
435 |
540 |
50 |
| KF-437A |
5(3.7) |
4" |
3ø |
2 |
15 |
0.6 |
435 |
585 |
53 |
| KF-455A |
71/2(5.5) |
4" |
3ø |
2 |
12 |
1 |
565 |
670 |
80 |
| KF-475 |
10(7.5) |
4" |
3ø |
2 |
14 |
1.4 |
580 |
730 |
100 |
| KF-4110 |
15(11) |
4" |
3ø |
2 |
25 |
1 |
600 |
740 |
105 |
|
|

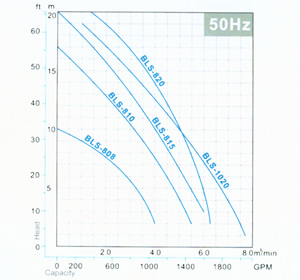

| » BLS SERIES |
 |
|
APPLICATIONS
Particular series for pumping station,
Agriculture irrigation, drainage of fishing ponds, aquafarm. subway.
flood control water supply for landscape and other particular
applications for large-flow capacity
Head of 5m above is applicable |
|
FEATURES
1 Dry motor type and resetting motor protection is built-in to prevent motor from over-heat and over-load
2 Inner cable wires and cable base are upgraded by filling EPOXYto raise humidity-resistance
3 Motor frame and casing are both made of stainless steel and water-cooling jacket is designed to increase rates of diffusion of heats
4 Stainless steel shaft is calibrated by dynamic balance test Dual mechanical seals SIC / SIC are installed and dual oil seal is designed to raise dust-proof
5 Mix flow design to meet large flow capacity and purpose of energy saving and easy assemblage
6 Pump housing bracket and stress eliminating plate are both made of high wear resistant steel
7 The series can be particularly used for multi-function of water extraction and delivery |
 |
| Model |
Output Hp (kW) |
Outlet Diameter inch |
Phase ø |
Pole |
Standards |
Max diameter mm |
Height mm |
Weight kg |
| Head m |
Capacity m3/min |
| BLS-808 |
71/2(5.5) |
8" |
3ø |
4 |
6 |
2.8 |
330 |
720 |
110 |
| BLS-810 |
10(7.5) |
8" |
3ø |
4 |
9 |
3.5 |
380 |
800 |
140 |
| BLS-815 |
15(11) |
8" |
3ø |
4 |
10 |
4 |
420 |
800 |
170 |
| BLS-820 |
20(15) |
8" |
3ø |
4 |
14 |
4 |
420 |
860 |
180 |
| BLS-1020 |
20(15) |
10" |
3ø |
4 |
10 |
5 |
420 |
860 |
185 |
|
|

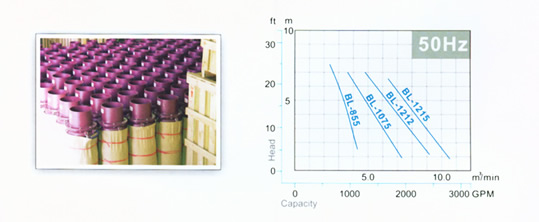

| » BL SERIES |
 |
|
APPLICATIONS
Agriculture irrigation, drainage of fishing ponds, aquafarm, subway, flood control, water supply for landscape and other particular applications for large-flow capacity Head of 5m and below is applicable |
|
FEATURES
1 Axial flow design to meet large flow capacity, low energy consumption and easy assemblage
2 Convenient to operate with no need of high voltage generator, and the least vibration and noise caused
3 Motor frame and casing are both made of copper alloy and stainless steel to raise durability and wear-resistance
4 The series have been designed particularly as cast iron
-economical type for special applications (customized)
5. Dual mechanical seals are adopted for higher friction - resistance to be reliable for applying in seawater. slurry and sewage Motor frame and outer cover are both made of stainless steel 304. highly precise positions of screws designed for easy maintenance withoul metal fatigue occurred
6 Inner cable wires and cable base are upgraded by filling EPOXY to raise humidity-resistance |
 |
| Model |
Output Hp (kW) |
Outlet Diameter inch |
Phase ø |
Pole |
Standards |
Max diameter mm |
Height mm |
Weight kg |
| Head m |
Capacity m3/min |
| BL-855 |
71/2(5.5) |
8" |
3ø |
4 |
4 |
3.5 |
340 |
920 |
120 |
| BL-1075 |
10(7.5) |
10" |
3ø |
4 |
4 |
5.5 |
370 |
1100 |
180 |
| BL-1212 |
16(12) |
12" |
3ø |
4 |
4 |
7 |
430 |
1080 |
225 |
| BL-1215 |
20(15) |
12" |
3ø |
4 |
4 |
8.2 |
430 |
1100 |
236 |
|
|

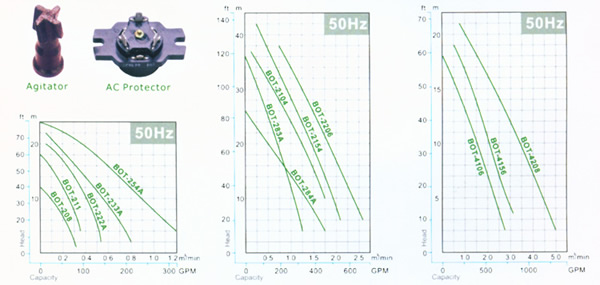

| » BOT SERIES |
 |
|
APPLICATIONS
Civil engineering, drainage of subway / tunnel for solid sediment, water treatment of ironworks, mobile use for drainage of public facilities, removal of sludge at harbor / river, other drainage of slurry in industry |
|
FEATURES
1 Dry-type submersible pump Overload protector is built-in to protect motor from over-heat and over-load
2 Inner cable wires and cable base are upgraded by filling EPOXY to raise humidity-resistance
3 Motor frame and casing are both made of stainless steel and water -cooling jacket is designed for high efficiency of heat diffusion
4 Stainless steel shaft is calibrated by dynamic balance test Dual mechanical seal SIC / SIC are installed and dual oil seals are designed to raise effects of dust-proof
5 impeller and agitator are both made of high chrome alloy steel (HCR) which produces high wear-resistance, impeller is also calibrated by dynamic balance test
6 Pump housing and stress eliminating plate are both made of high wear-resisting cast iron for durability, and an innovative design between pump housing bracket and mechanical seal lid to reduce flow stress and last the life of seals longer |
 |
| Model |
Output Hp (kW) |
Outlet Diameter inch |
Phase ø |
Pole |
Standards |
Free Passage mm |
Max diameter mm |
Height mm |
Weight kg |
| Head m |
Capacity m3/min |
| BOT-208 |
1(0.75) |
2" |
1ø/3ø |
2 |
8 |
0.16 |
7 |
178 |
460 |
25 |
| BOT-211 |
11/2(1.1) |
2" |
1ø/3ø |
2 |
12 |
0.2 |
7 |
178 |
490 |
27 |
| BOT-222A |
2(1.5) |
2" |
1ø/3ø |
2 |
17 |
0.2 |
10 |
230 |
580 |
54 |
| BOT-233A |
3(2.2) |
3" |
1ø/3ø |
2 |
12 |
0.45 |
10 |
230 |
630 |
55 |
| BOT-254A |
5(3.7) |
4" |
3ø |
2 |
8 |
1 |
12 |
230 |
720 |
60 |
| BOT-283A |
71/2(5.5) |
3" |
3ø |
2 |
25 |
0.5 |
12 |
320 |
725 |
76 |
| BOT-284A |
71/2(5.5) |
4" |
3ø |
2 |
15 |
0.9 |
12 |
320 |
725 |
76 |
| BOT-2104 |
10(7.5) |
4" |
3ø |
2 |
24 |
1 |
15 |
365 |
850 |
110 |
| BOT-4106 |
10(7.5) |
6" |
3ø |
4 |
9 |
1.6 |
25 |
365 |
850 |
115 |
| BOT-2154 |
15(11) |
4" |
3ø |
2 |
28 |
1 |
15 |
365 |
850 |
115 |
| BOT-4156 |
15(11) |
6" |
3ø |
4 |
13 |
1.6 |
25 |
365 |
850 |
120 |
| BOT-2206 |
20(15) |
6" |
3ø |
2 |
25 |
1.6 |
15 |
380 |
1000 |
135 |
| BOT-4208 |
20(15) |
8" |
3ø |
4 |
10 |
3.5 |
25 |
440 |
1000 |
180 |
|
|
|

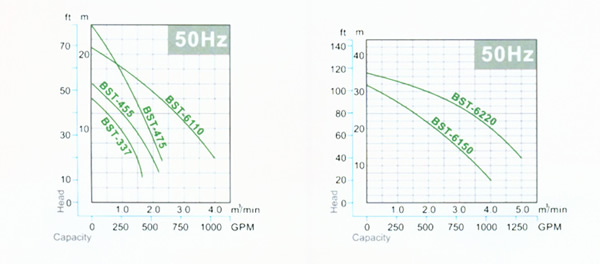

| » BST SERIES |
 |
|
FEATURES
1 Dry-type submersible pump Overload protector is built-in to protect motor from over-heat and over-load
2 Inner cable wires and cable base are upgraded by filling EPOXY to raise humidity-resistance
3 Motor frame and casing arc both made of stainless steel, and water-cooling jacket is designed for high efficiency of heat diffusion.
4 Stainless steel shaft is calibrated by dynamic balance lest Dual mechanical seal SIC / SIC are installed and dual oil seals are designed to raise dust-proof
5 Impeller and agitator are both made of high chrome alloy steel (HCR) which produces high wear-resistance; impeller is also calibrated by dynamic balance test
6 Pump housing and stress eliminating plate are both made by high wear-resisting cast iron, a innovative design of pump housing and mechanical seal lid lo reduce flow stress and last the life of seals longer |
|
APPLICATIONS
Habor, river, construction, sludge and sand drainage Civil engineering subway, waste water drainage of building construction
Concrete, cement factory and waste water of kiln processing center and treatment of industrial waste water. |
 |
| Model |
Output Hp (kW) |
Outlet Diameter inch |
Phase ø |
Pole |
Standards |
Free Passage mm |
Max diameter mm |
Height mm |
Weight kg |
| Head m |
Capacity m3/min |
| BST-337 |
5(3.7) |
3" |
3ø |
4 |
10 |
0.9 |
22 |
420 |
820 |
110 |
| BST-455 |
71/2(5.5) |
4" |
3ø |
4 |
12 |
1 |
25 |
420 |
820 |
120 |
| BST-475 |
10(7.5) |
4" |
3ø |
4 |
17 |
1 |
35 |
420 |
840 |
130 |
| BST-6110 |
15(11) |
6" |
3ø |
4 |
15 |
2 |
35 |
570 |
1100 |
240 |
| BST-6150 |
20(15) |
6" |
3ø |
4 |
18 |
2.5 |
35 |
565 |
1100 |
265 |
| BST-6220 |
30(22) |
6" |
3ø |
4 |
20 |
4 |
35 |
578 |
1325 |
410 |
|
